WELD-ON TOP T-SHAPED RESERVOIR

Each Reservoir Includes The Following
Standard Features & Accessories:
  • Weld Riser with Filler / Breather
  • Fluid Level / Temp. Gauge ( 5" )
  • Endcovers with seals
  • Lifting holes
  • Baffle with cutouts
  • Drain
  • Interior and exterior treated with a rust preventative oil coating. All reservoirs shipped unprimed.
  • Leg height is 6" with two 11/16" dia. mounting holes on each side.
  • Top has same material thickness as fronts
  • Material is Pickled and Oiled steel
  • All accessories are shipped loose inside of reservoir.

An optional drip lip ( 1/4" thick X 2" high ) is available.  Use the following formula to calculate the Drip Lip List Price**. 4(A) +2(L) = Total Length in inches, then Total Length x 70 per inch = Drip Lip List Price. To order a drip lip add (-DL) to the end of the reservoir model number.

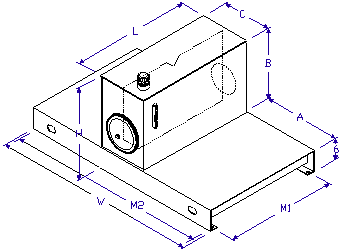

 DIMENSIONAL DATA

MODEL

NUMBER

GALLON

CAPACITY

LENGTH

L

WIDTH

W

HEIGHT

H

A

B

C

E/C

SIZE

MOUNTING

MATERIAL

WEIGHT

IN LBS.

M1

M2

FRONTS

DECK

WT-T-10

10 GAL

21 1/2"

36"

23 3/4"

12 1/4"

17 3/4"

11 1/2"

10"

19"

34 1/2"

7 GA

7 GA

166

WT-T-20

20 GAL

30"

48"

24 1/4"

17 7/8"

18 1/4"

12 5/8"

10"

25 1/2"

46 1/2"

7 GA

7 GA

249

WT-T-30

30 GAL

33 1/2"

60"

26"

22 7/8"

20"

14 5/8"

12"

29"

58 1/2"

7 GA

7 GA

319

WT-T-45

45 GAL

45 1/2"

60"

26 1/4"

22 1/2"

20 1/4"

15 1/2"

14"

43"

58 1/2"

7 GA

7 GA

439

WT-T-60

60 GAL

45 1/2"

60"

33"

22 1/2"

27"

15 1/2"

14"

43"

58 1/2"

7 GA

7 GA

493

WT-T-80

80 GAL

58 1/4"

60"

35"

22 1/2"

29"

15 1/2"

14"

55"

58 1/2"

7 GA

3/8"

855

WT-T-100

100 GAL

58 1/4"

72"

35"

27 1/4"

29"

18"

16"

55"

70 1/2"

7 GA

3/8"

960

WT-T-120

120 GAL

58 1/4"

72"

35"

26"

29"

20 5/8"

16"

55"

70 1/2"

7 GA

3/8"

975

WT-T-150

150 GAL

72"

72"

34 1/2"

24 5/8"

28 1/2"

23 3/8"

16"

67 3/4"

70 1/2"

1/4"

3/8"

1305

WT-T-200

200 GAL

72"

72"

40 1/2"

23 1/2"

34 1/2"

25"

16"

67 3/4"

70 1/2"

1/4"

3/8"

1415

WT-T-300

300 GAL

72"

72"

52 1/2"

23 3/4"

46 1/2"

26 1/2"

16"

67 3/4"

70 1/2"

1/4"

3/8"

1625

For custom reservoirs of this style refer to this page.

 For S.S. reservoir and carbon steel deck refer to this page and this page.



NOTE: Due to product improvement, specifications and price are subject to change without notice.
* All List Prices are in US currency and all shipments are FOB from factory.

Please email saint@saint.com with questions or comments.
